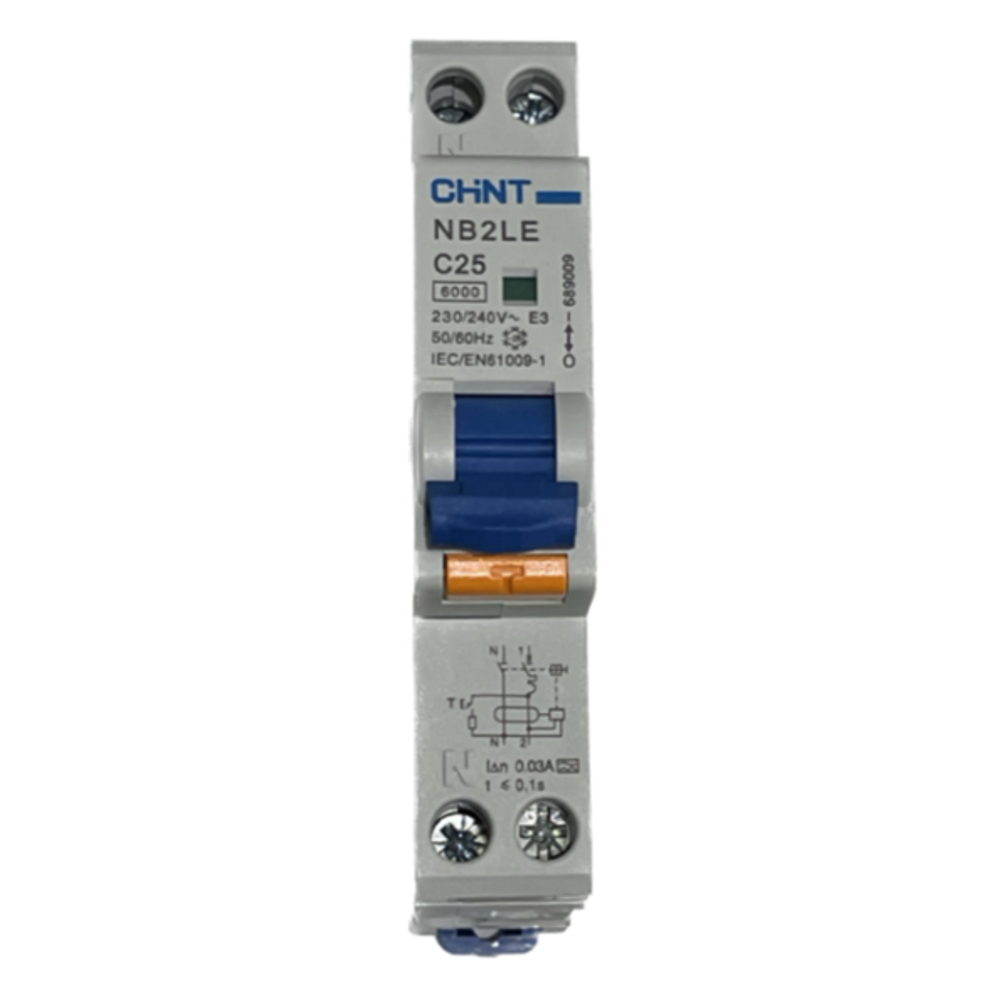

The CHINT NB2LE RCBO Compact is a space-saving and efficient solution for protecting electrical circuits from overloads, short circuits, and earth leakage. Designed with a 1P+N configuration, it combines the functions of an MCB and RCD into a single compact device.

With 30mA sensitivity, and 6kA breaking capacity, this RCBO provides reliable protection for residential and light commercial applications. The C-curve tripping characteristic allows it to handle moderate inrush currents, reducing nuisance tripping in everyday use.

Tripping class: Type A detects & trips on AC sinusoidal residual currents and pulsating DC residual currents, ensuring protection where electronic loads may produce DC components. It provides standard earth leakage protection (e.g., 30 mA) with fast disconnection.

Technical Specification:

• Standard: IEC/EN 61009-1
• Rated Voltage (Ue): AC 230/240 V
• Rated Current (In): 6A
• Poles: 1P + N
• Tripping Characteristics: Type C (5–10 In)
• Leakage Current Type: Type A
• Rated Sensitivity (I△n): 30mA
• Connection: From top
• Mounting: DIN rail
