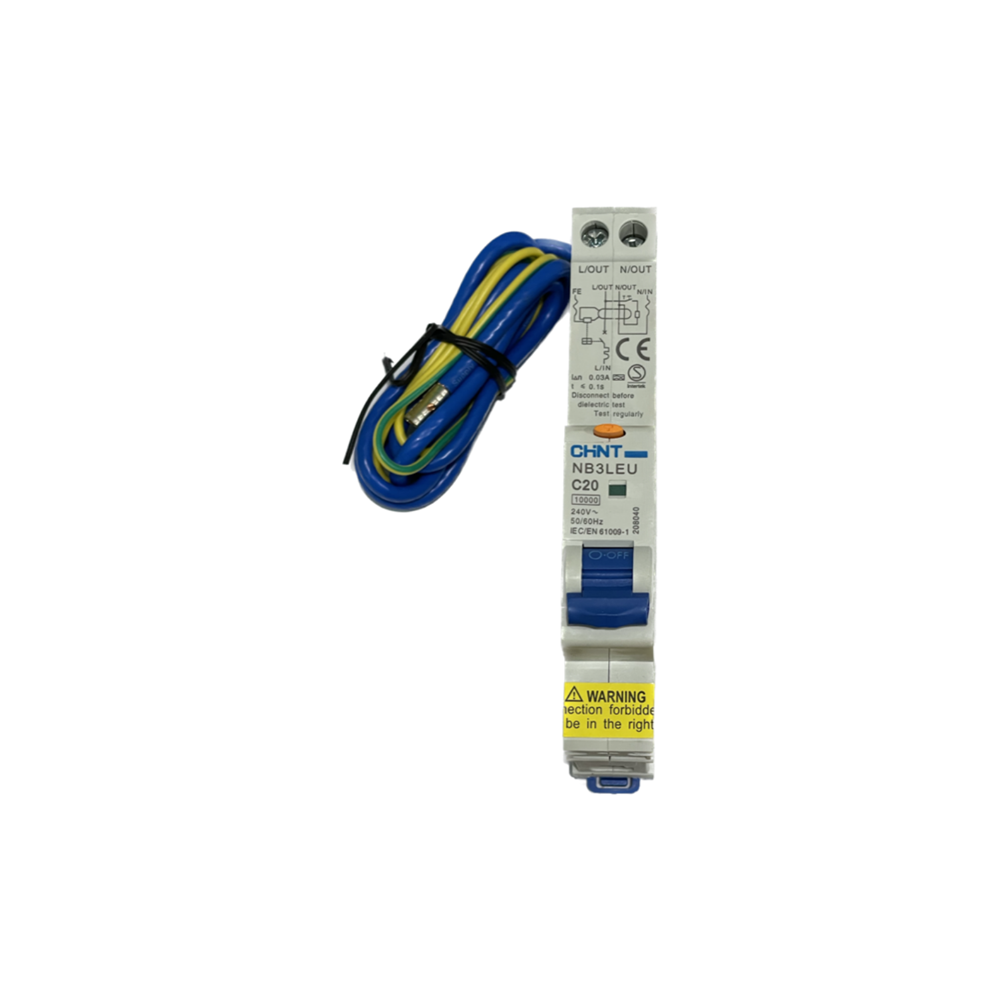

The CHINT 1P+N RCBO 20A 30mA 10kA C Curve Type A with pigtail is a compact, high-performance circuit protection device designed for modern electrical installations. It combines residual current protection and overcurrent protection in a single module, ensuring safety against electrical shock, overload, and short circuit.

With a 30mA sensitivity, this RCBO provides essential protection for people, while the 10kA breaking capacity ensures reliable performance under fault conditions. The C curve characteristic makes it suitable for circuits with moderate inrush currents such as lighting and power outlets. The Type A RCD ensures detection of both AC and pulsating DC residual currents, making it suitable for circuits with electronic equipment.

Designed for DIN rail mounting, the NB3LEU range is ideal for residential, commercial, and light industrial applications, offering fast disconnection and dependable operation.

Technical Specification:

• Complies with IEC/EN 61009-1safety standard for RCBOs. Ensures the device provides reliable protection and meets strict performance and safety requirements for electrical safety.
• Rated Current (In): 20A
• Poles:1P+N
• Tripping Curve: C Curve
• Earth Leakage Detection Type: Type A
• Rated Voltage (Ue): 240V AC
• Rated Sensitivity (I△n): 30mA
• Rated Short-circuit Capacity (Icn): 10kA
• Rated Insulation Voltage (Ui):500V
• Mounting Method: Din rail EN 60715 (35 mm) with fast clip-on design.
• Dimensions (mm): 110 H x 18 W x 76.5 D
