Features & Benefits

Motor Protection: Thermal Overload Relay type TR2-D of trip class 10, fully protects electric motors against operational overload, single phasing & built-in overload protection. These have 1NO+1NC, potential-free contacts, which can be used for signaling at a different voltage.

Contactors: Motor Starters have power contactors type TC1-D, which are used. These Airbreak Contactors used in the starter conform to IEC60947-4-1 & offer user-friendly features.

Star Delta Pneumatic Timer: Star Delta Pneumatic timer 1-30sec. Switching time of 40+50ms for safe changeover function.

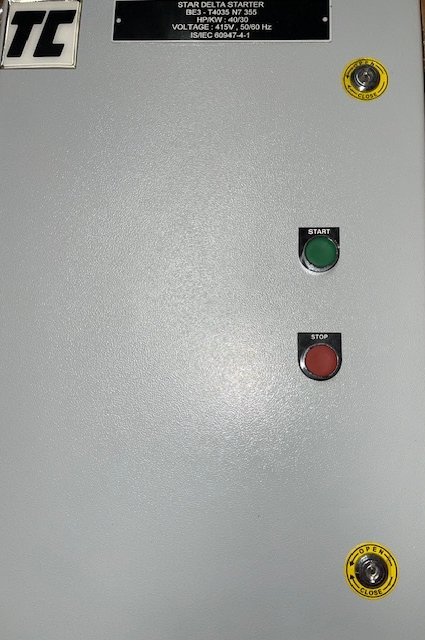

This Star Delta Starter is housed in a sheet steel enclosure 600x400x200, rated 30kW at AC3 (415V, 50Hz). Supplied with a 415V AC control coil and adjustable thermal overload relay (30–40A).
