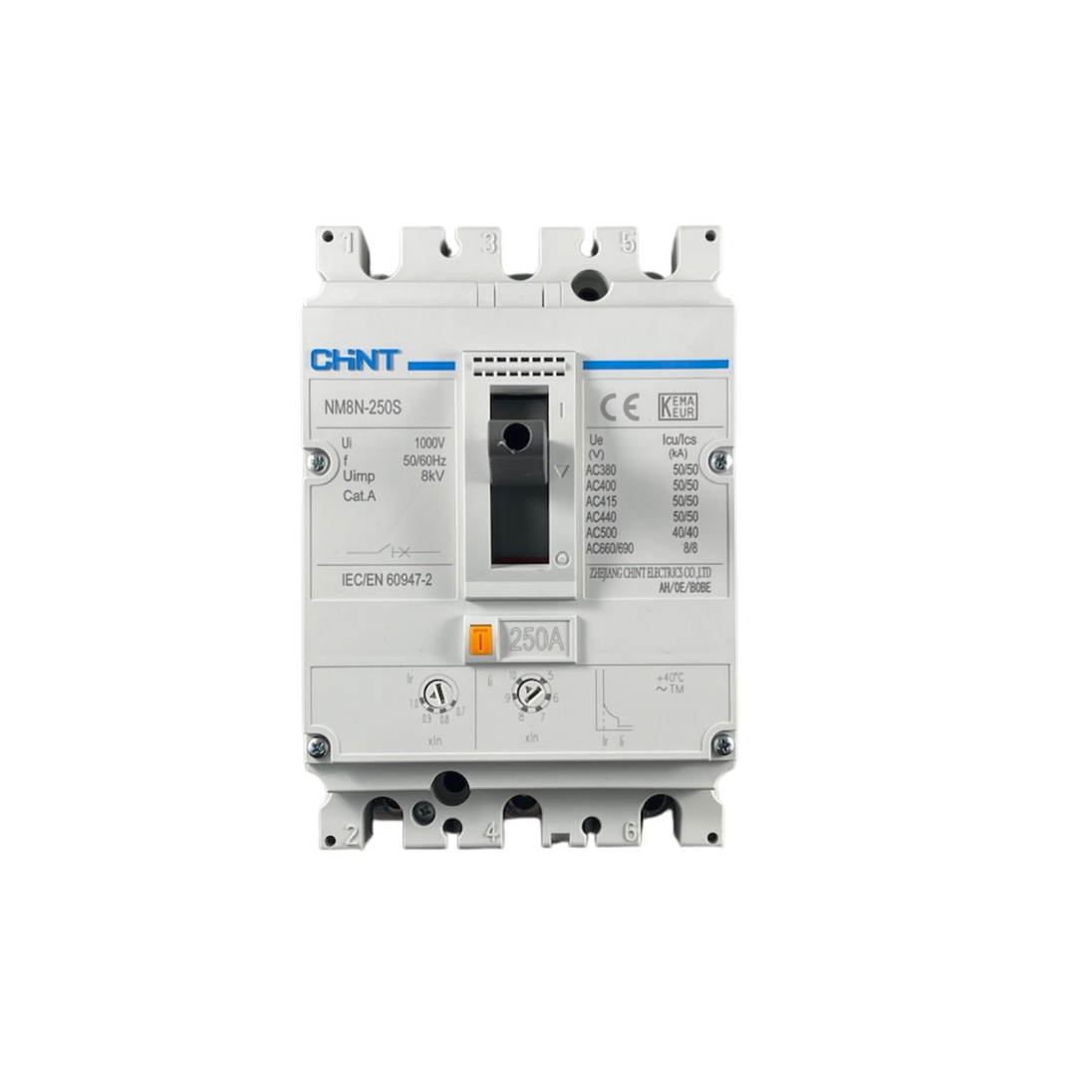

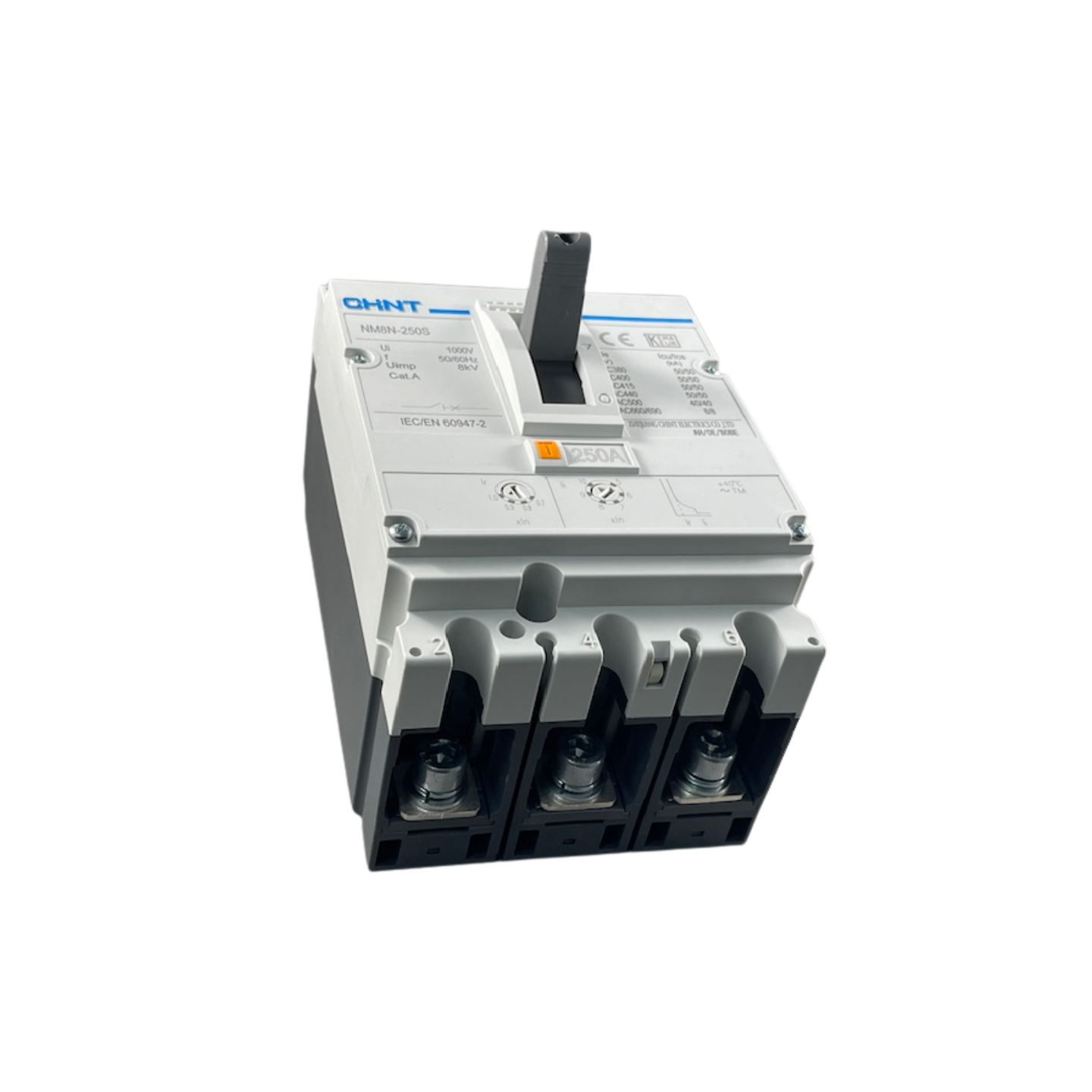

This moulded case circuit breaker is designed for AC circuit. This MCCB supports a rated current range of 175A to 250A and comes in a 3 Pole, with a breaking capacity of 50kA. Thermal-magnetic release can be adjusted to allow users to customize protection parameters based on specific needs.

Optional Accessories:

• SHT22-M8-24VDC Shunt release 24VDC
• SHT22-M8-240VAC Shunt release 240VAC

• UVT22-M8-DC24V Under-voltage release 24VDC
• UVT22-M8-AC240V Under-voltage release 240VAC
• MOD22-M8AC240V/DC220V Motor-driven mechanism
• ERH22-M8T Extended rotary handle for TM type

• KLK22-M8 Locking system
• MIT22-M8-3P Mechanical interlock 3P
• TCV22-M8 3P Terminal Shrouds short 3P
• TCE22-M8 3P Terminal Shrouds long 3P
• FCP22-M8 3P Terminal Spreaders 3P
• DRA22-M8-3P DIN-rail adapter
